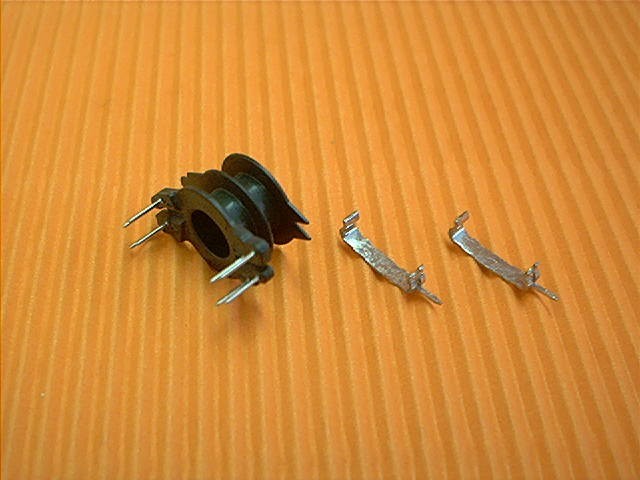

- RM 6 Coil former, 8 pins, 2 sections
RM 6 coil former
(for SMPS transformers with line isolation)
Sections: 2
Pins: 8
Material: GFR thermosetting plastic (UL 94 V-0, thermal class to IEC 60085: F: max. operating temperature 155 °C), colour code: green, Vyncolit/X661 ® [E167521 (M)], VYNCOLIT NV
EPCOS: B65808-X1108-D2 or compatible
Type data sheet: CLICK here
Packing unit: 1 piece
Suitable for all RM 6 cores, except low-profile.
(for SMPS transformers with line isolation)
Sections: 2
Pins: 8
Material: GFR thermosetting plastic (UL 94 V-0, thermal class to IEC 60085: F: max. operating temperature 155 °C), colour code: green, Vyncolit/X661 ® [E167521 (M)], VYNCOLIT NV
EPCOS: B65808-X1108-D2 or compatible
Type data sheet: CLICK here
Packing unit: 1 piece
Suitable for all RM 6 cores, except low-profile.
